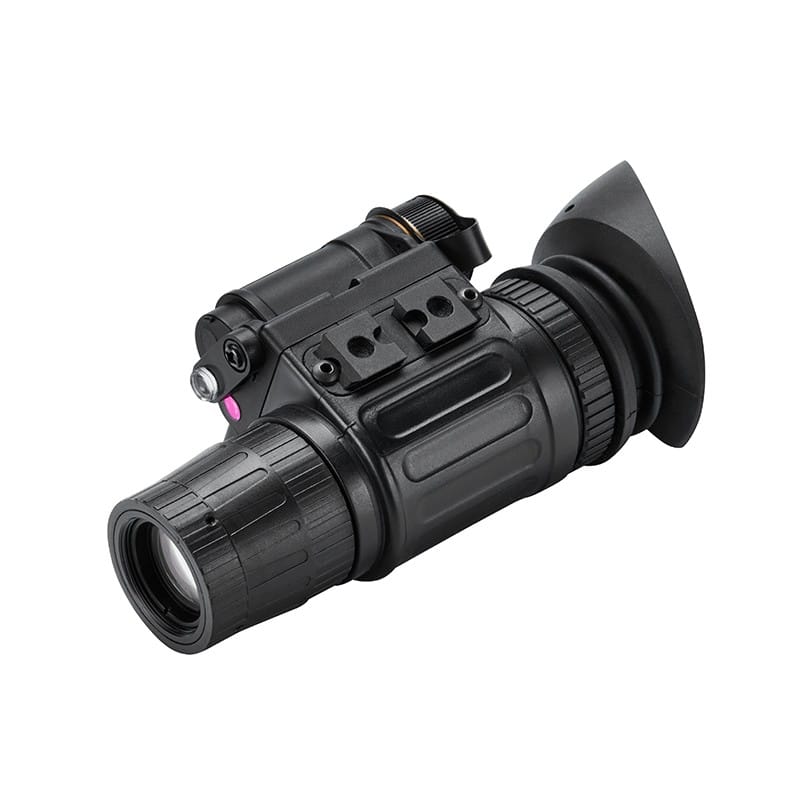

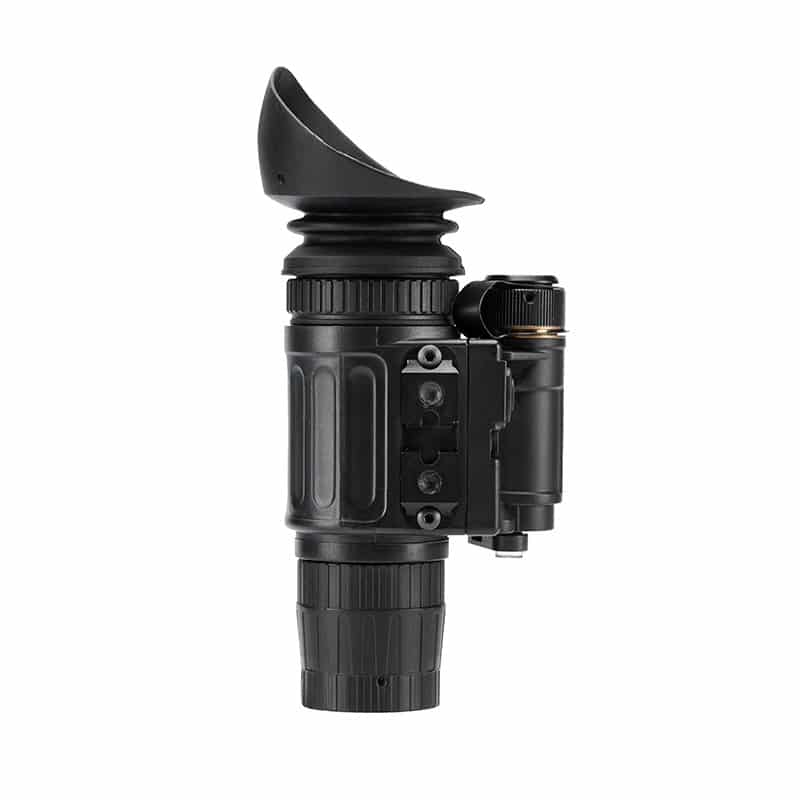

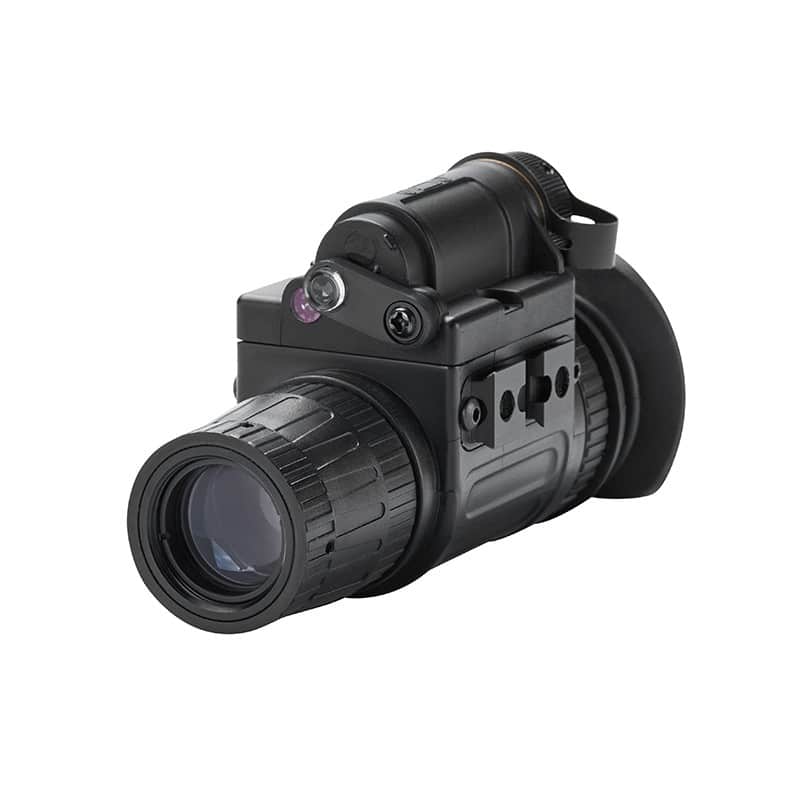

ZS2031 Monocular Single Tube Head Mounted Night Vision Device

  • Model: ZS2031
  • Image intensifier level: Gen2+/Super 2nd Generation
  • Resolution (lp/mm): 57-64
  • Type of negative pole surface: S25
  • Signal-to-noise ratio (dB): 17-21
  • Optical sensitivity (microamperes/lumens): 500-600
  • The time between failures (hours): 10000
  • Magnification rate: 1x
  • Field of view (degrees): 40
  • Visual adjustment range (diopter): +5/-5
  • Lens System: F1.2, 25.8mm
  • Objective adjustment range (m): 0.25–∞
  • Volume(mm): 110 x 68 x 42
  • Weight(g): 311
  • Supply voltage (v): 2.0-4.2
  • Type: 1X CR123 Alithium battery
  • Continuous working hours(hour): 80 (without infrared) and 40 (turn on infrared)
  • Operating temperature range (°C): -40/+60
  • Protection grade: IP67 (optional)

Description

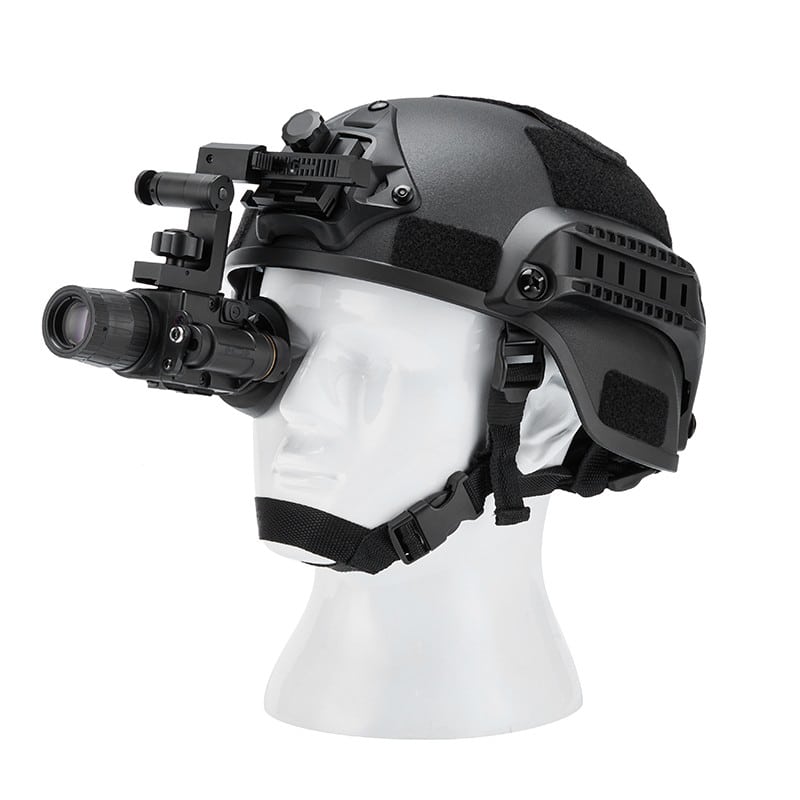

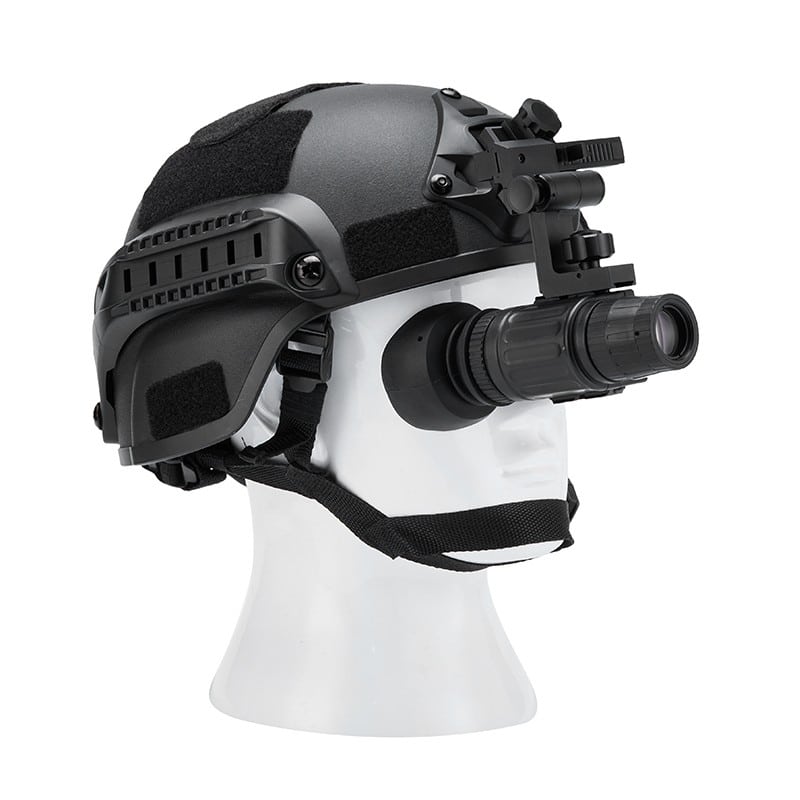

ZM2031 is a very popular multi-functional night vision device for individual soldiers in the market. It can be worn on the head or helmet, and can also be used in conjunction with a camera or camcorder for night scene shooting.

★ Waterproof and dustproof up to IP67 level, basic IP65
★ Direction sensing automatic switch: When the device is not needed temporarily, you can press a button on the helmet to lift the device up to the top position and release it. At this time, the device will automatically turn off. When it is necessary to continue using it, press the same button to lower the device to the observation position, and the device will automatically return to its working state.
★ Changing the objective lens can change the magnification, and can be equipped with 3x, 5x, or 6x lenses
★ Optional with a separate infrared intensifier
★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment
★ Battery cover spring embedded: It can better contact the battery and the spring is not easily damaged, making it easier to twist on the battery cover.
★ Helmet can be freely adjusted: The helmet device can be adjusted according to the size of different users’ heads.
★ Multilayer coating standard: Ultra wideband multilayer antireflective film can suppress broadband reflection on the glass surface of the lens, reduce brightness loss, and allow more light to pass through the lens, thus achieving good observation effect
★ Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring a stable observation effect and protecting vision.
★ Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.

Functional Features

Applicable scope:

Able to complete night marching, close observation, and equipment control in dark environments. It can be worn on the head or helmet, or installed on other tools for outdoor shooting, and can also be used in conjunction with cameras or camcorders for night scene shooting.

Product features:

★ Equipped with visual adjustment function, meeting the wearing requirements of personnel with different vision; The helmet bracket can be freely adjusted, and can be adjusted left, right, high, and back according to user needs.

★ Compatible with goggles and gas mask.

★ High reliability, able to adapt to battlefield environments and withstand airborne drop environments.

★ Waterproof and dustproof up to IP67 level (optional).

★ Direction sensing automatic switch: When the device is not needed temporarily, you can press a button on the helmet to lift the device up to the top position and release it. At this time, the device will automatically turn off. When it is necessary to continue using, press the same button to lower the device to the observation position, and the device will automatically return to its working state.

★ Changing the objective lens can change the magnification, and can be equipped with 3x, 5x, or 6x lenses.

★ Optional with separate infrared intensifier.

★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment.

★ Battery cover spring embedded: It can better contact the battery and the spring is not easily damaged, making it easier to twist on the battery cover.

★ Multilayer coating standard: Ultra wide band multilayer antireflection film can inhibit the broadband reflection of the glass surface of the lens, reduce the light loss, make more light pass through the lens to obtain good observation effect, and has strong light protection function.

★ Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring stable observation effect and protecting vision.

★ Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.
