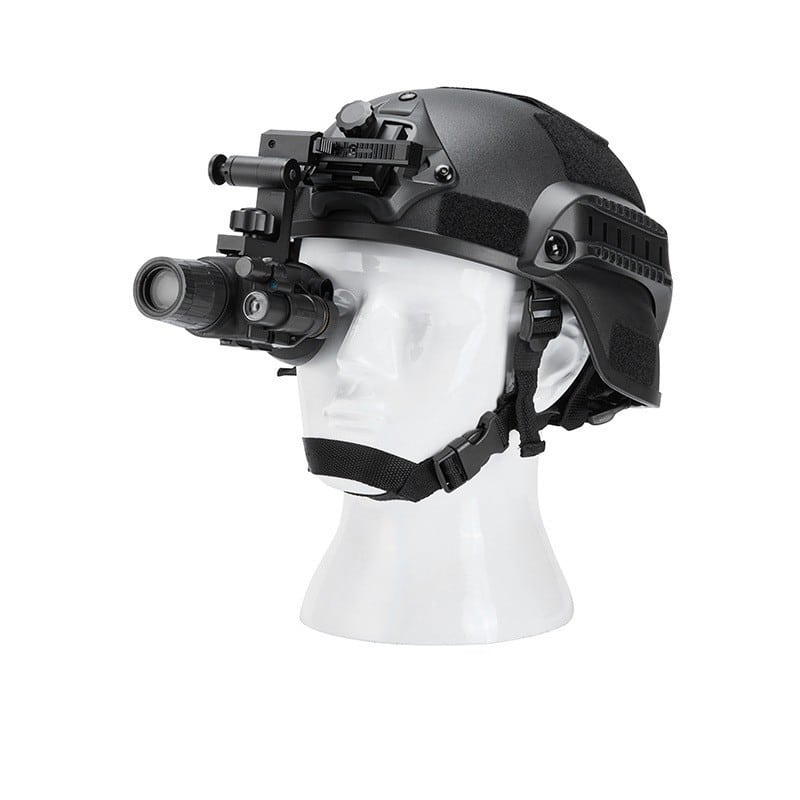

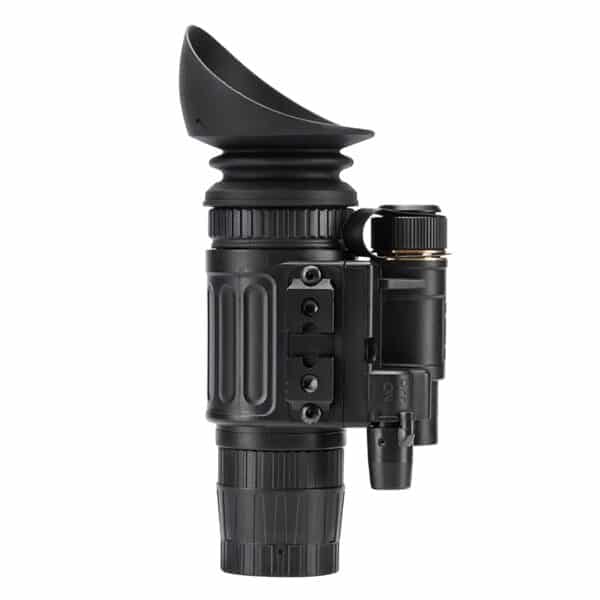

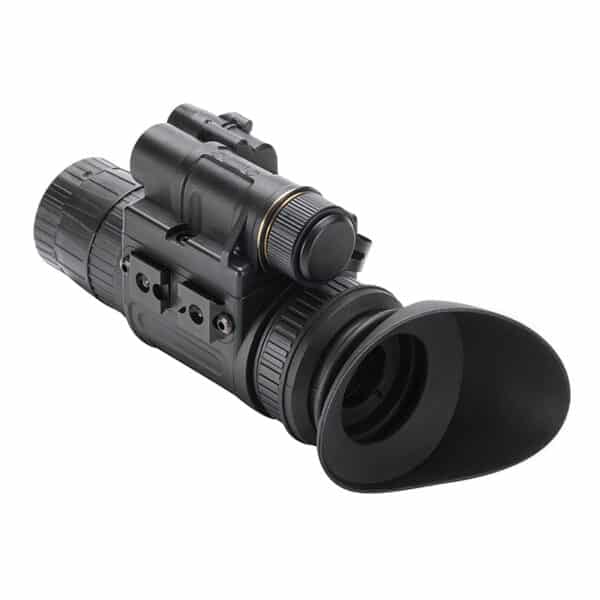

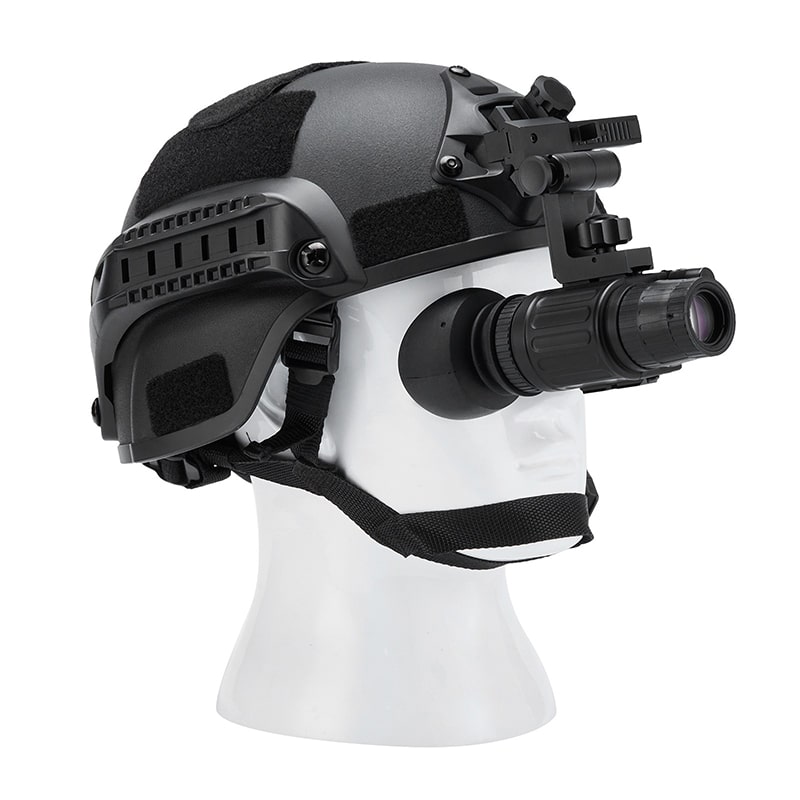

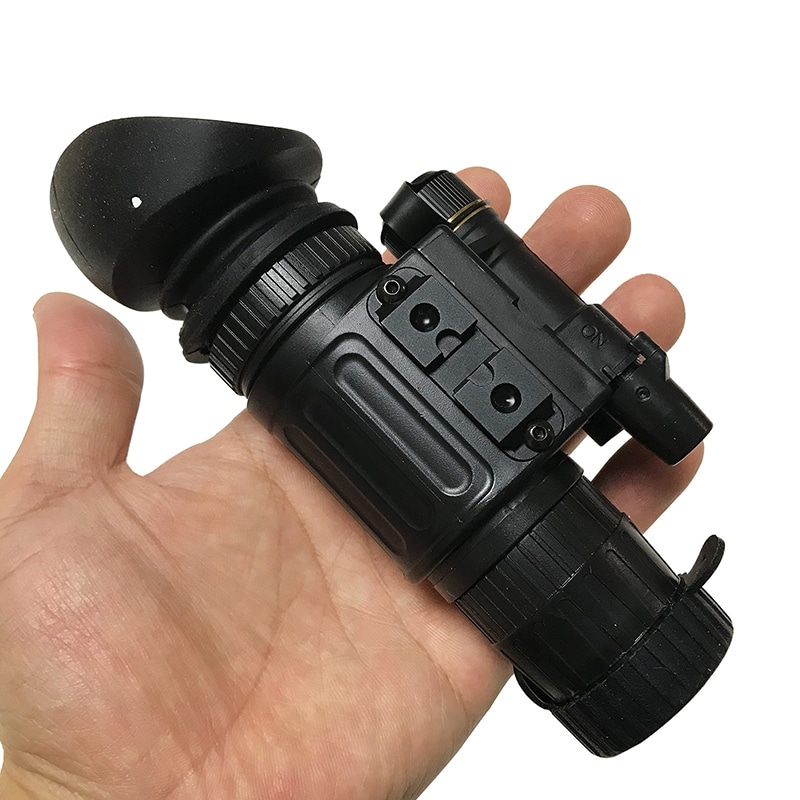

ZS2041 Military Head Mounted Night Vision Monocular Helmet Mount Telescope

  • Model: ZS2041
  • Image intensifier level: Gen2+,Super 2nd generation
  • Resolving power: 72 pairs
  • Type of negative pole surface: S25
  • Signal-to-noise ratio (dB): 17-21
  • Optical sensitivity (microamperes/lumens): 700-900
  • Time between failures (hours): 10000
  • Observation distance: At 1 × Under 10-3 Lux environmental illumination, the detection distance for people is 200 meters, and the recognition distance is 150 meters
  • Magnification rate: 1x (can be equipped with a high-power lens -3x/5x/6x)
  • Field of view (degrees): 45
  • Visual adjustment range (diopter): The diopter adjustment shall not be less than -5SD -+5SD; Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring stable observation effect and protecting vision.
  • Lens system: F1.2, 25.8mm
  • Pupillary Distance: 30 millimeters; Can be assembled into a binocular binocular night vision device
  • Objective adjustment range: The focusing range is 250mm to ∞, and the magnification can be changed by changing the objective lens. It can be equipped with 3x, 5x, or 6x lenses;
  • Volume (mm): 110 x 68 x 42
  • Weight (g): 309 (excluding battery)/327 (including battery)
  • Power supply voltage (v): 2.0-4.2
  • Battery type: 1X CR123Alithium battery
  • Continuous working hours: 80 (without infrared enabled), 40 (with infrared enabled)
  • Operating temperature range (° C): Between -40 ℃ and+60 ℃
  • Protection grade: IP67
  • Direction sensing automatic switch: support
  • Automatic brightness function: support
  • Battery spring embedded design: support
  • Infrared auxiliary light: support
  • Built-in infrared indicator light: support
  • Infrared wavelength (nm): 850
  • Independent long-distance infrared light: support
  • Low battery indicator: support

Description

ZS2041 Night Vision Monocular is a very popular multi-functional night vision device for individual soldiers in the market. It can be worn on the head or helmet and can be used in conjunction with a camera or camcorder for night scene shooting.

Functional Features

Applicable scope:

Able to complete night marching, close observation, and equipment control in dark environments. It can be worn on the head or helmet, or installed on other tools for outdoor shooting, and can also be used in conjunction with cameras or camcorders for night scene shooting.

Product features:

★ Equipped with a visual adjustment function, meeting the wearing requirements of personnel with different vision; The helmet bracket can be freely adjusted, and can be adjusted left, right, high, and back according to user needs.

★ Compatible with goggles and gas mask.

★ High reliability, able to adapt to battlefield environments and withstand airborne drop environments.

★ Waterproof and dustproof up to IP67 level (optional).

★ Direction sensing automatic switch: When the device is not needed temporarily, you can press a button on the helmet to lift the device up to the top position and release it. At this time, the device will automatically turn off. When it is necessary to continue using, press the same button to lower the device to the observation position, and the device will automatically return to its working state.

★ Changing the objective lens can change the magnification, and can be equipped with 3x, 5x, or 6x lenses.

★ Optional with separate infrared intensifier.

★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment.

★ Battery cover spring embedded: It can better contact the battery and the spring is not easily damaged, making it easier to twist on the battery cover.

★ Multilayer coating standard: Ultra wideband multilayer antireflection film can inhibit the broadband reflection of the glass surface of the lens, reduce the light loss, make more light pass through the lens to obtain a good observation effect, and have a strong light protection function.

★ Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring a stable observation effect and protecting vision.

★ Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.

Functional Features

Applicable scope:

Able to complete night marching, close observation, and equipment control in dark environments. It can be worn on the head or helmet, or installed on other tools for outdoor shooting, and can also be used in conjunction with cameras or camcorders for night scene shooting.

Product features:

★ Equipped with visual adjustment function, meeting the wearing requirements of personnel with different vision; The helmet bracket can be freely adjusted, and can be adjusted left, right, high, and back according to user needs.

★ Compatible with goggles and gas mask.

★ High reliability, able to adapt to battlefield environments and withstand airborne drop environments.

★ Waterproof and dustproof up to IP67 level (optional).

★ Direction sensing automatic switch: When the device is not needed temporarily, you can press a button on the helmet to lift the device up to the top position and release it. At this time, the device will automatically turn off. When it is necessary to continue using, press the same button to lower the device to the observation position, and the device will automatically return to its working state.

★ Changing the objective lens can change the magnification, and can be equipped with 3x, 5x, or 6x lenses.

★ Optional with separate infrared intensifier.

★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment.

★ Battery cover spring embedded: It can better contact the battery and the spring is not easily damaged, making it easier to twist on the battery cover.

★ Multilayer coating standard: Ultra wide band multilayer antireflection film can inhibit the broadband reflection of the glass surface of the lens, reduce the light loss, make more light pass through the lens to obtain good observation effect, and has strong light protection function.

★ Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring stable observation effect and protecting vision.

★ Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.
