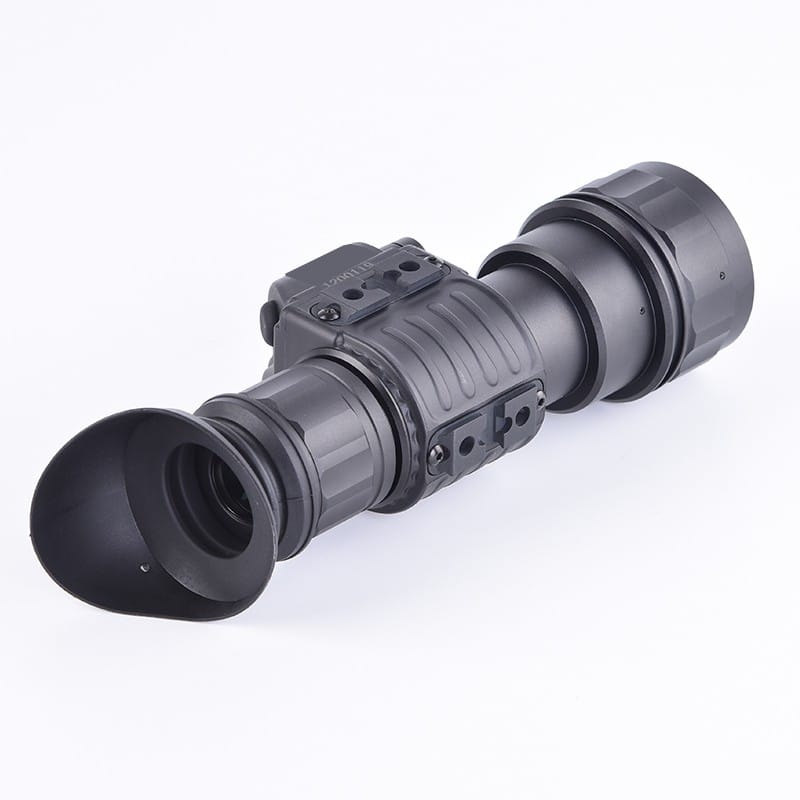

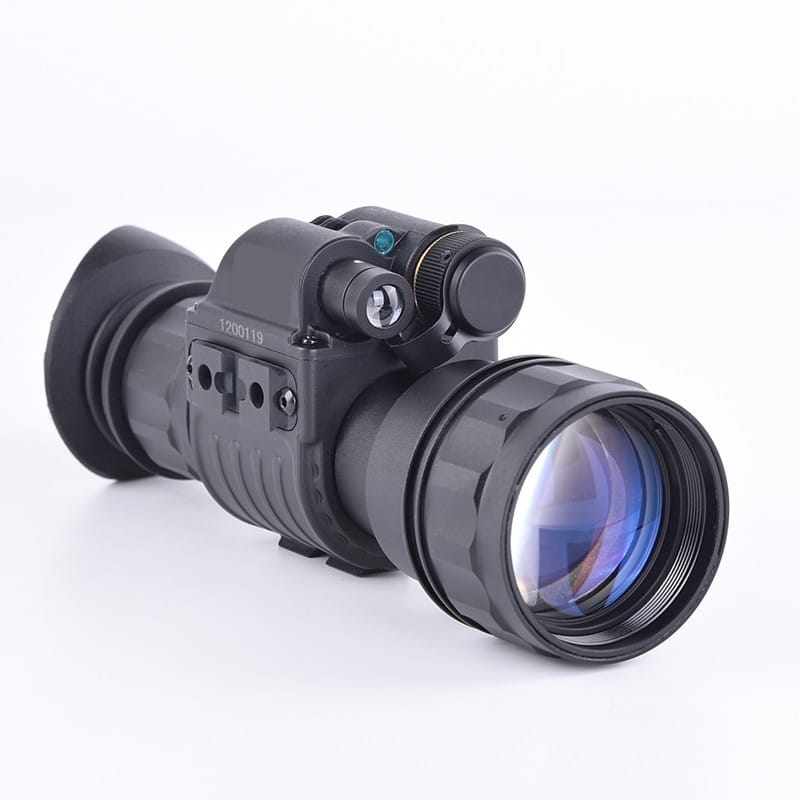

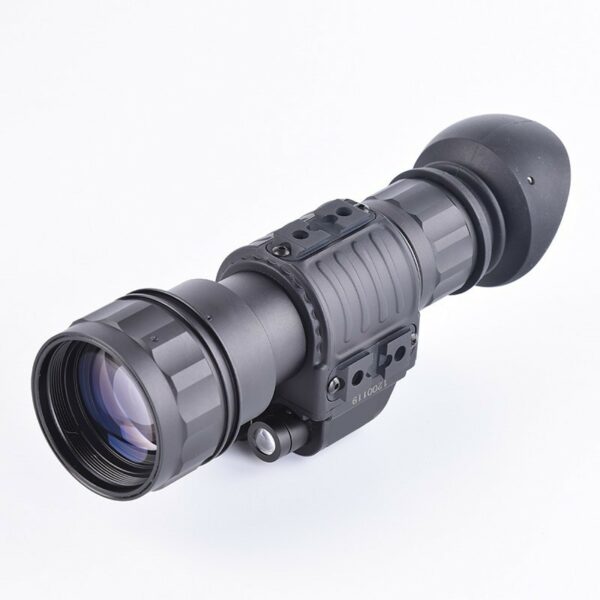

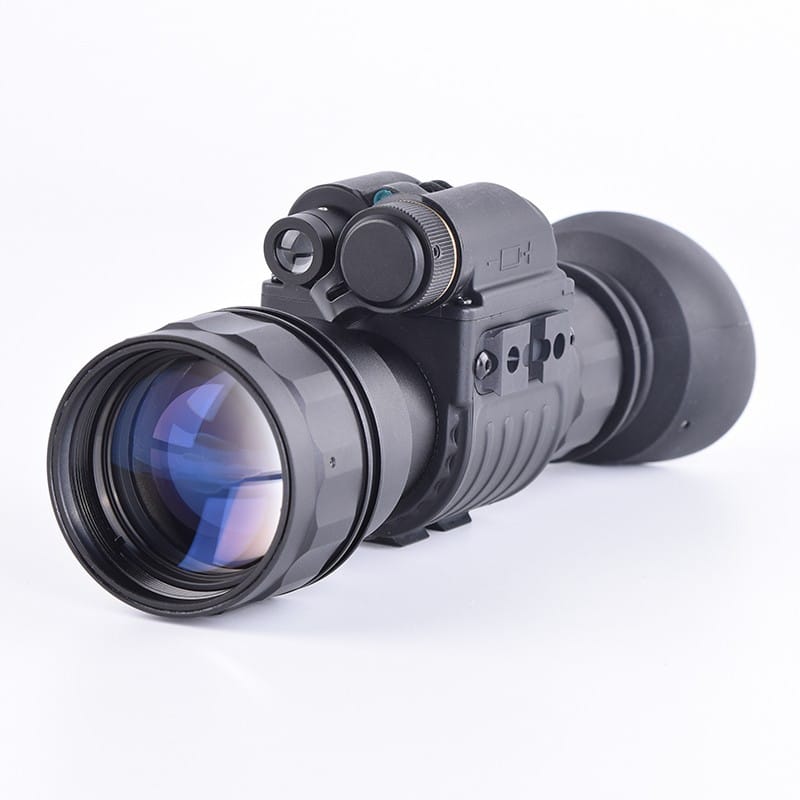

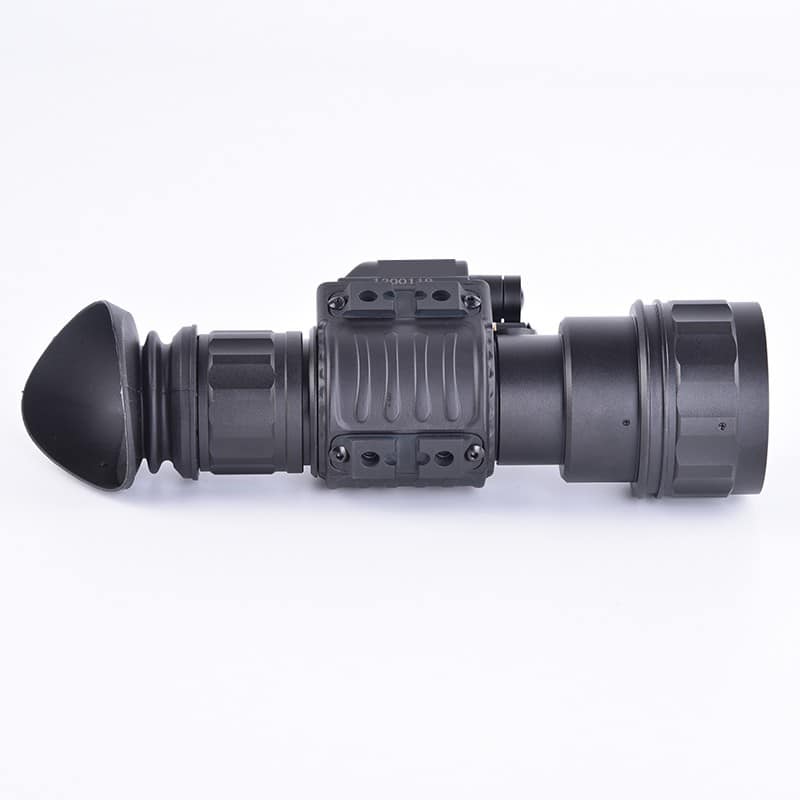

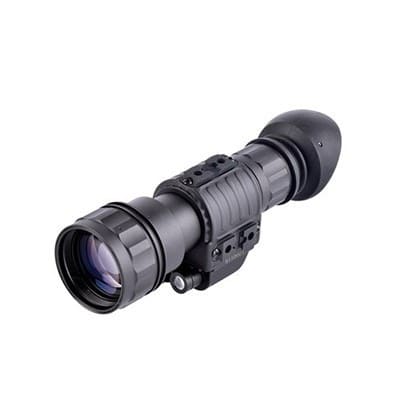

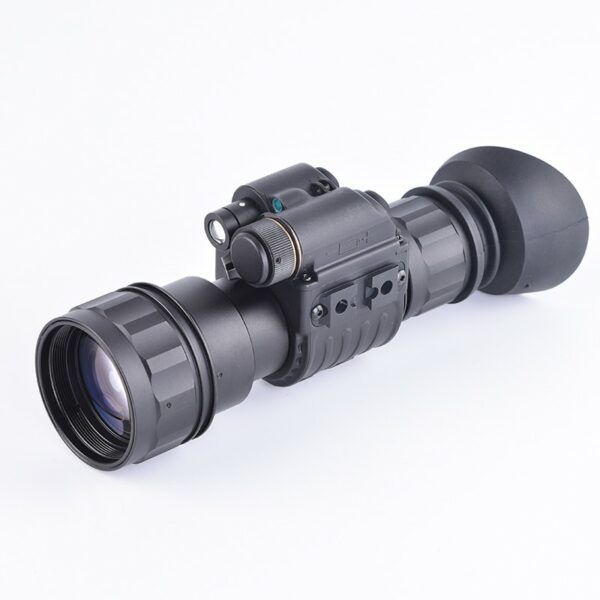

ZSM2013/3013 Monocular Low Light Night Vision System

ZSM2013/3013 is a very popular multi-functional night vision product in the market. As a classic single tube low light night vision instrument, it has high magnification – long viewing distance, large objective lens – strong transparency, and can be equipped with second-generation+ or quasi-third-generation (G450+) image intensifier tubes according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, and other night shooting devices as well as functional accessories. The diversity of optional accessories greatly expands the range of use of this night vision device. This product has strong practicality and can be applied to night fishing, forest fire prevention, power line patrol, and home safety.

Description

Model ZSM2013 ZSM3013
Image intensifier level Gen2+ Gen3
Resolution ratio(lp/mm) 48-65 65-72
Type of negative pole surface S25 Gallium arsenide
signal-to-noise ratio (dB) 17-21 21-24
Optical sensitivity (microamperes/lumens) 550-650 1500-1800
Lens coating type Ultra-wideband multilayer antireflective film Ultra-wideband multilayer antireflective film
Magnification rate 3x 3x
Field of view (degrees) 15 15
visual adjustment range
(diopter)
+5/-5 +5/-5
Lens system F1.5,68mm F1.5,68mm
Objective adjustment range (m) ≥1 ≥1
Volume (mm) 158x73x54 158x73x54
weight ( g) 578 578
Power supply voltage(v) 2.0-4.2 2.0-4.2
Battery type 1xCR123A lithium battery 1xCR123A lithium battery
Continuous working hours 80 (Turn on infrared) 80(Turn on infrared)
Anti-glare protection function Have Have
automatic brightness function Have Have
Embedded design of battery
cover spring
Have Have
Built-in infrared indicator
light
Have Have
0perating temperature
range ( ℃ )
-50/+60 -50/+60
Storage temperature range ( ℃ ) -50/+70 -50/+70
Relative humidity 98% 98%
Protection grade IP68 (Optional) IP68 (Optional)



Functional Features

Applicable scope:

Able to complete night marching, close observation, and equipment control in dark environments. It can be worn on the head or helmet, or installed on other tools for outdoor shooting, and can also be used in conjunction with cameras or camcorders for night scene shooting.

Product features:

★ Equipped with visual adjustment function, meeting the wearing requirements of personnel with different vision; The helmet bracket can be freely adjusted, and can be adjusted left, right, high, and back according to user needs.

★ Compatible with goggles and gas mask.

★ High reliability, able to adapt to battlefield environments and withstand airborne drop environments.

★ Waterproof and dustproof up to IP67 level (optional).

★ Direction sensing automatic switch: When the device is not needed temporarily, you can press a button on the helmet to lift the device up to the top position and release it. At this time, the device will automatically turn off. When it is necessary to continue using, press the same button to lower the device to the observation position, and the device will automatically return to its working state.

★ Changing the objective lens can change the magnification, and can be equipped with 3x, 5x, or 6x lenses.

★ Optional with separate infrared intensifier.

★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment.

★ Battery cover spring embedded: It can better contact the battery and the spring is not easily damaged, making it easier to twist on the battery cover.

★ Multilayer coating standard: Ultra wide band multilayer antireflection film can inhibit the broadband reflection of the glass surface of the lens, reduce the light loss, make more light pass through the lens to obtain good observation effect, and has strong light protection function.

★ Automatic brightness adjustment: When the brightness of the surrounding environment changes, the brightness of the image we see from the night vision device remains unchanged, ensuring stable observation effect and protecting vision.

★ Low battery indicator: When the battery is low, the green indicator light at the edge of the green fluorescent screen can be observed flashing through the eyepiece.
